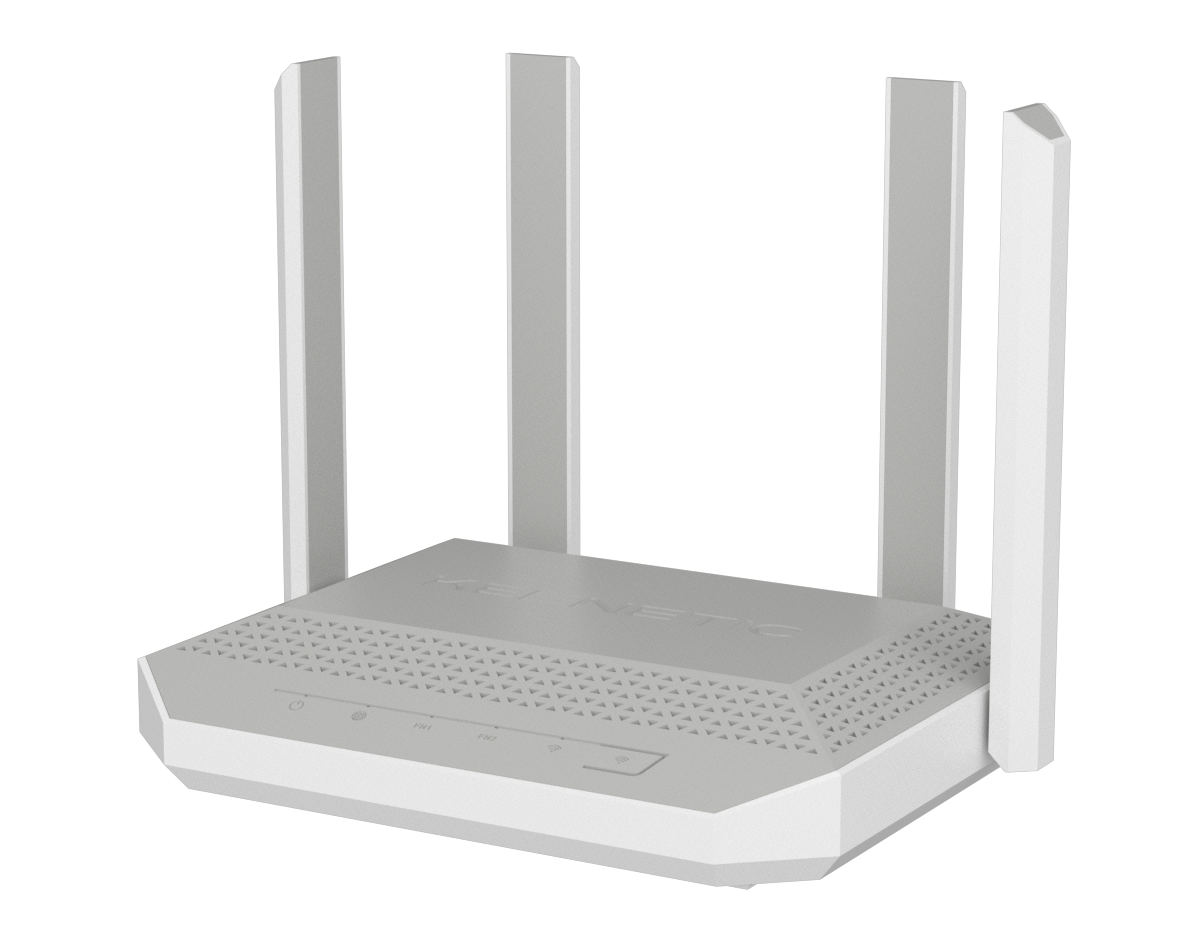

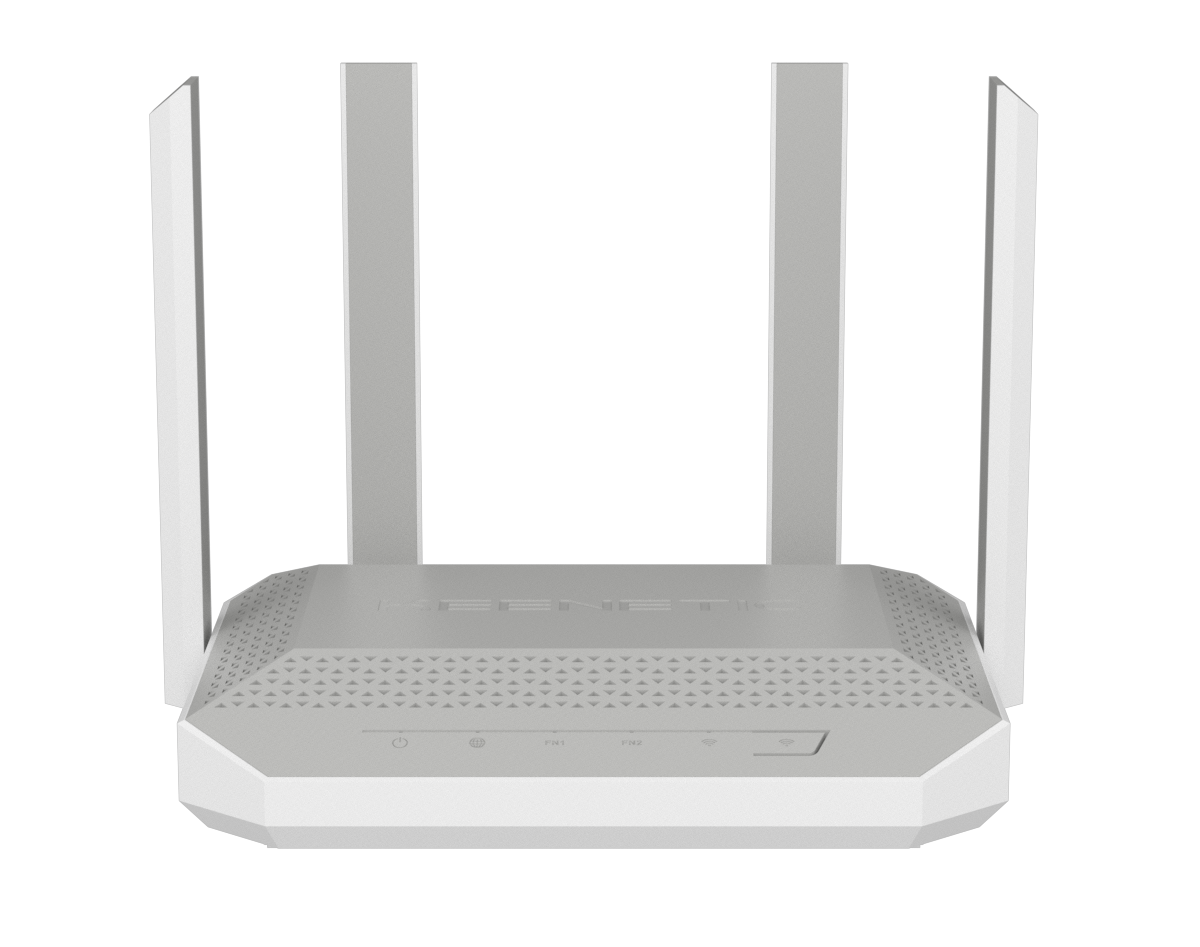

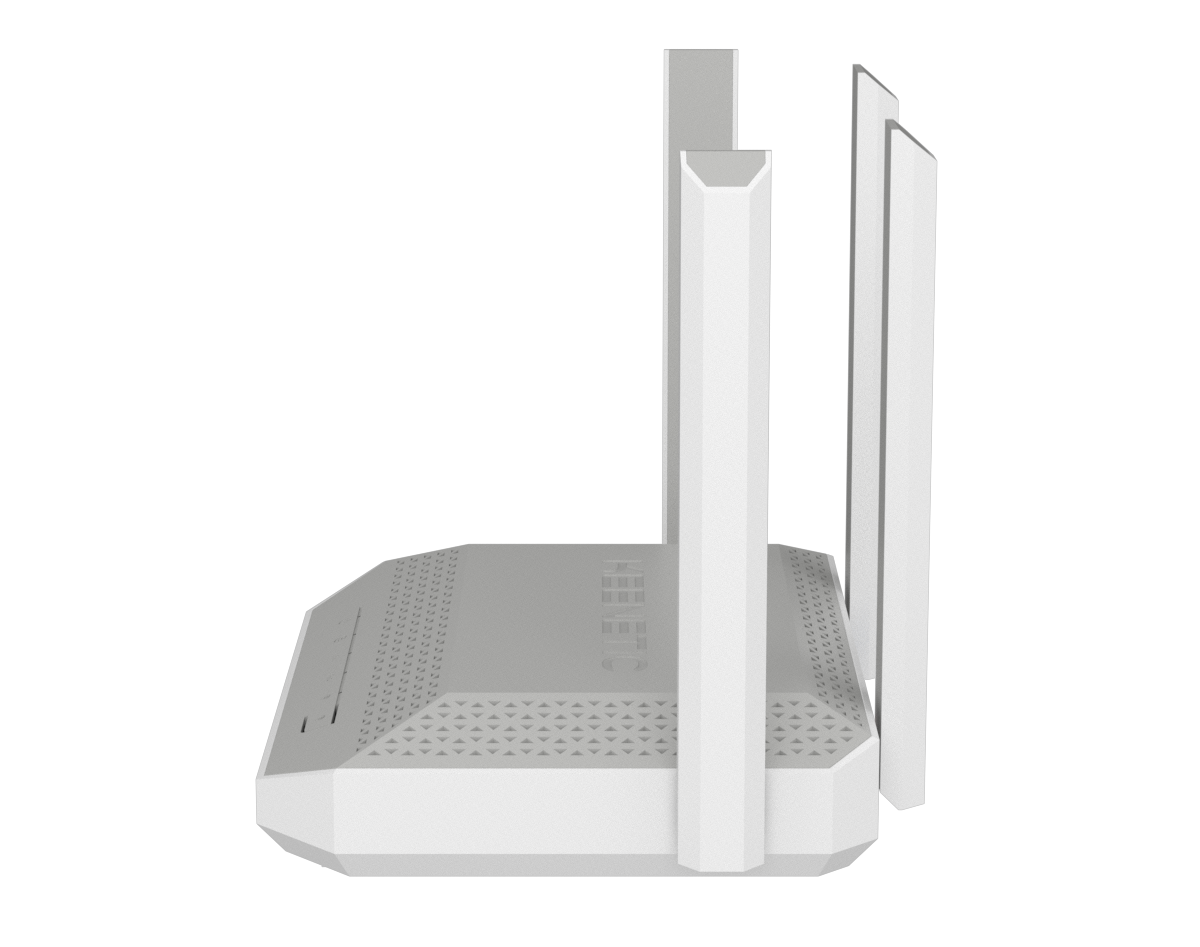

Keenetic Titan
AX3200 Mesh
Unlock the potential of your digital world
Beyond speed, towards limitless possibilities
The second generation Keenetic Titan features an energy-efficient dual-core ARM Cortex-A53 1.35 GHz processor with 512 MB of DDR3 RAM, AX3200-class
The guardian of your digital domain
Beyond connectivity: a smarter way to network

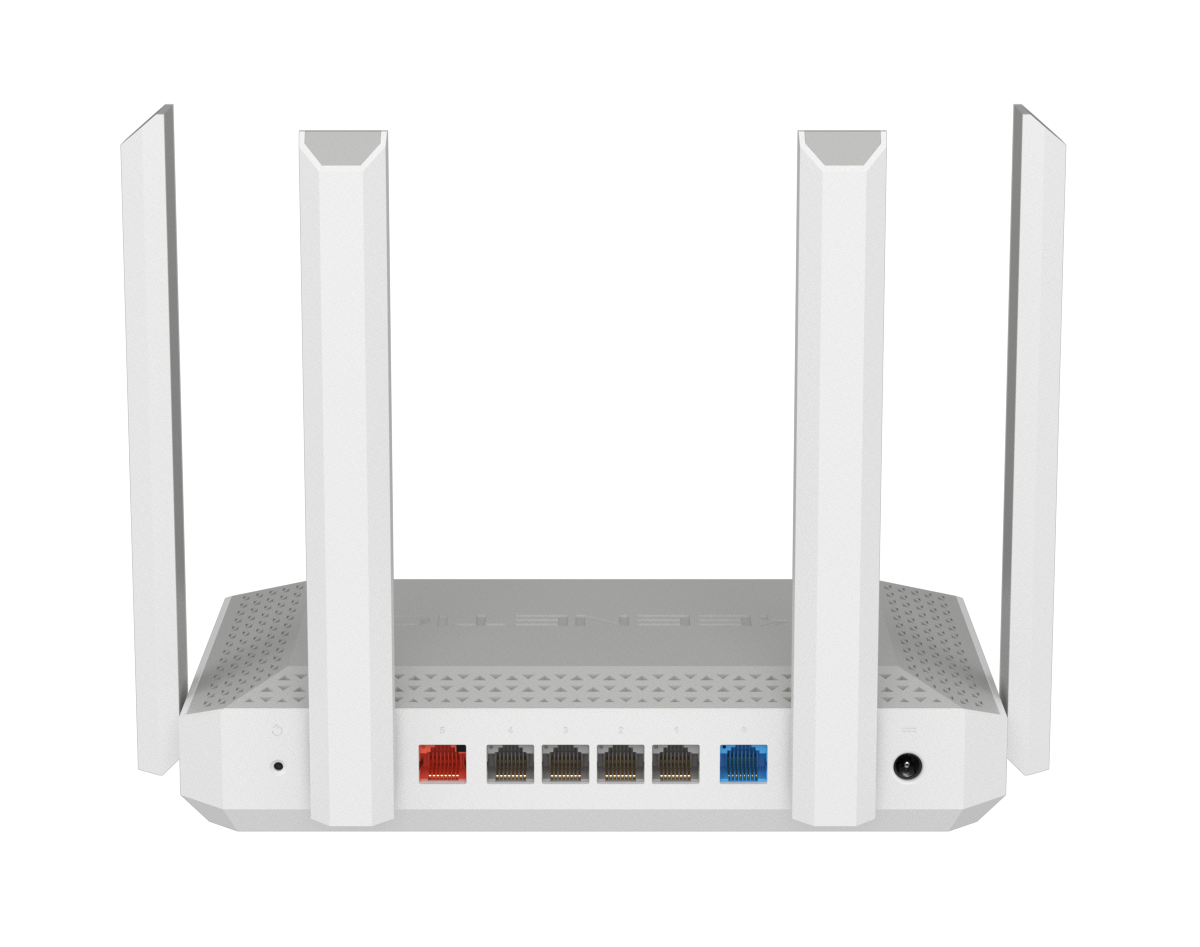

By default, the Multi-Gig port works as a LAN to connect a switch, NAS or gaming computer, or a second Keenetic Titan to organise a 2.5 Gigabit backhaul connection for a high-performance mesh
Wi-Fi 6 AX3200
Equipped with the latest
2.5 Gbps Ethernet
Ideal for heavy-duty streaming, gaming or transferring large files, this port provides a more reliable and efficient wired connection that outperforms traditional network solutions.

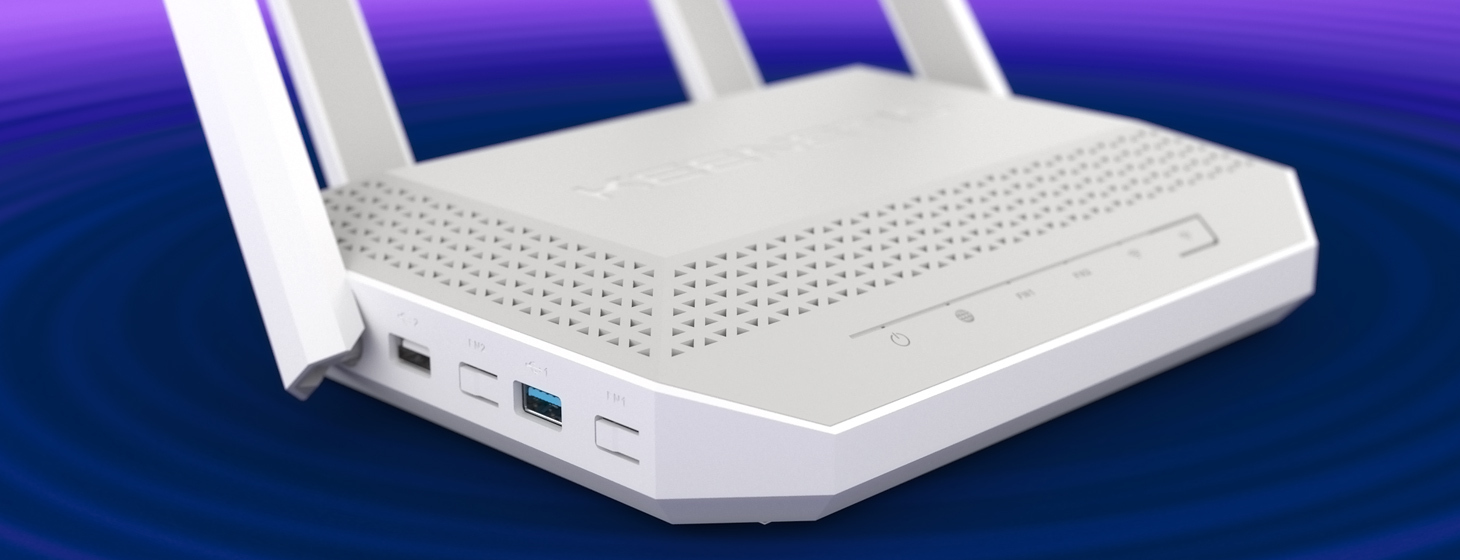

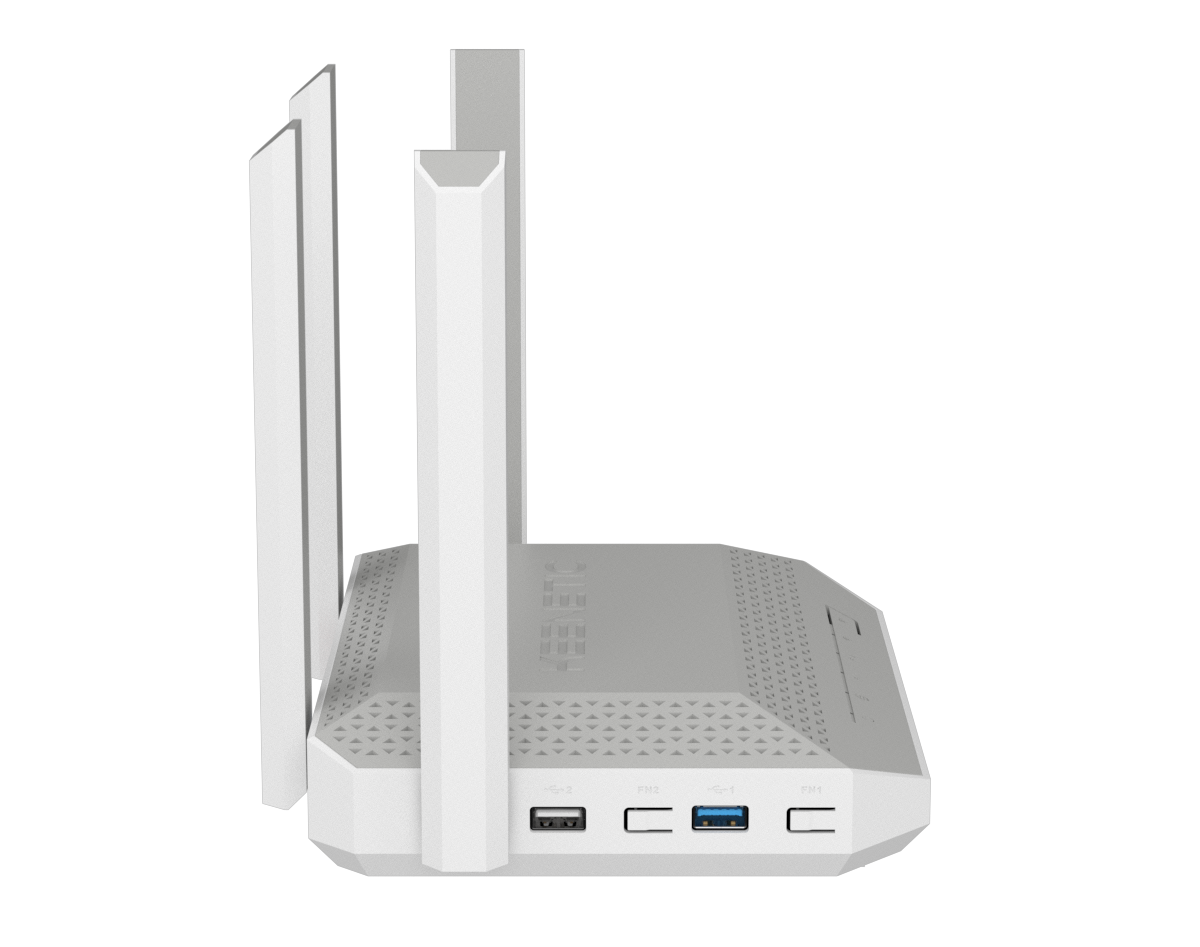

USB 3.0+2.0 ports
Do more with Keenetic! Connect a USB drive to enable network storage for seamless file sharing and backup, create a media server for streaming content to Smart TVs or build a private cloud for secure remote access to your data. Use USB modems for 4G connectivity or Keenetic telephony adapter for VoIP functionality.
Whole Home & Mesh Wi-Fi
Say goodbye to dead zones with our Mesh
Multi-WAN
Aggregate multiple Internet connections, increasing overall bandwidth and providing failover to ensure constant connectivity.
Mixed-VPN clients/servers
Secure your online activities and enjoy the flexibility of multiple VPN protocols. Whether you want to protect your privacy, work remotely or bypass geo-blocks, our product has you covered.
The most advanced operating system for your network
KeeneticOS makes managing your network a breeze. With a beautifully designed interface and rich functionality, you can build the most advanced networks that work for your family or business and protect against cyber threats.
Learn more
Specifications
| IPoE, PPPoE, PPTP, L2TP, 802.1x | ✔ |
|---|---|
| Multi-WAN | ✔ |
| Policy routing | ✔ |
| Internet connection backup | ✔ |
| Ping Check connectivity monitor | ✔ |
| PPPoE/PPTP/L2TP pass-through | ✔ |
| VLAN IEEE 802.1Q | ✔ |
| Link aggregation | ✔ |
| Routing table |
✔ |
| IntelliQoS | ✔ |
| DHCP |
✔ |
| IPv6 Dual Stack | ✔ |
| NAT | ✔ |
| IGMP | ✔ |
| UDP to HTTP proxy | ✔ |
| UPnP | ✔ |
| Manual port forwarding | ✔ |
| SPI firewall with protection against DoS attacks | ✔ |
| PPTP |
✔ |
| L2TP over IPSec |
✔ |
| OpenVPN |
✔ |
| SSTP |
✔ |
| Ethernet-over-IP, |
✔ |
| IPsec VPN |
✔ |
| WireGuard | ✔ |
| Dynamic DNS client | ✔ |
| Direct or cloud access via KeenDNS | ✔ |
| HTTPS security for access via KeenDNS | ✔ |
| Cloudflare DNS | ✔ |
| SafeDNS parental control | ✔ |
| AdGuard ad blocker | ✔ |
| Traffic statistics per client | ✔ |
| Bandwidth limit per client | ✔ |
| Access schedule per client or interface | ✔ |
| Guest hotspot with authentication (Captive Portal) | ✔ |
| Mobile broadband modem support | ✔ |
|---|---|
| RAS, NDIS, CDC-Ethernet, QMI support | ✔ |
| File server and personal cloud | ✔ |
| FAT, FAT32, exFAT, NTFS, EXT2, EXT3, EXT4, HFS+ support | ✔ |
| CIFS/SMB | ✔ |
| AFP | ✔ |
| FTP, SFTP | ✔ |
| WebDAV | ✔ |
| Time Machine, File History support | ✔ |
| Support for third-party extension packages from the Entware and Debian repositories | ✔ |
| Download Station | ✔ |
| File server | ✔ |
| Media server | ✔ |
| Print server | ✔ |
| Cloud-based Remote Network Monitoring and Management | ✔ |
|---|---|
| Mobile app for Android and iOS | ✔ |
| Web Interface with the Initial Setup Wizard and HTTPS security | ✔ |
| Command Line (CLI) via |
✔ |
| An option to control from external network | ✔ |
| Backup and restore configuration | ✔ |
| Automatic OS updates | ✔ |
| System event logging | ✔ |
| Device dimensions excluding antenna, w x d x h | 214 mm x 154 mm x 33 mm |
|---|---|
| Device weight | 500 g |
| Operating temperature | 0–40 °С |
| Operating humidity | 20–95% non-condensing |
| Power supply voltage |
100–240 V |
| Device | ✔ |
|---|---|
| Power adapter | 12 V 2.5 A |
| Ethernet cable | ✔ |
| Quick start guide | ✔ |
| EU Declaration of Conformity | CE-KN-1811-EN |
|---|
| Keenetic Titan (KN-1810) |
