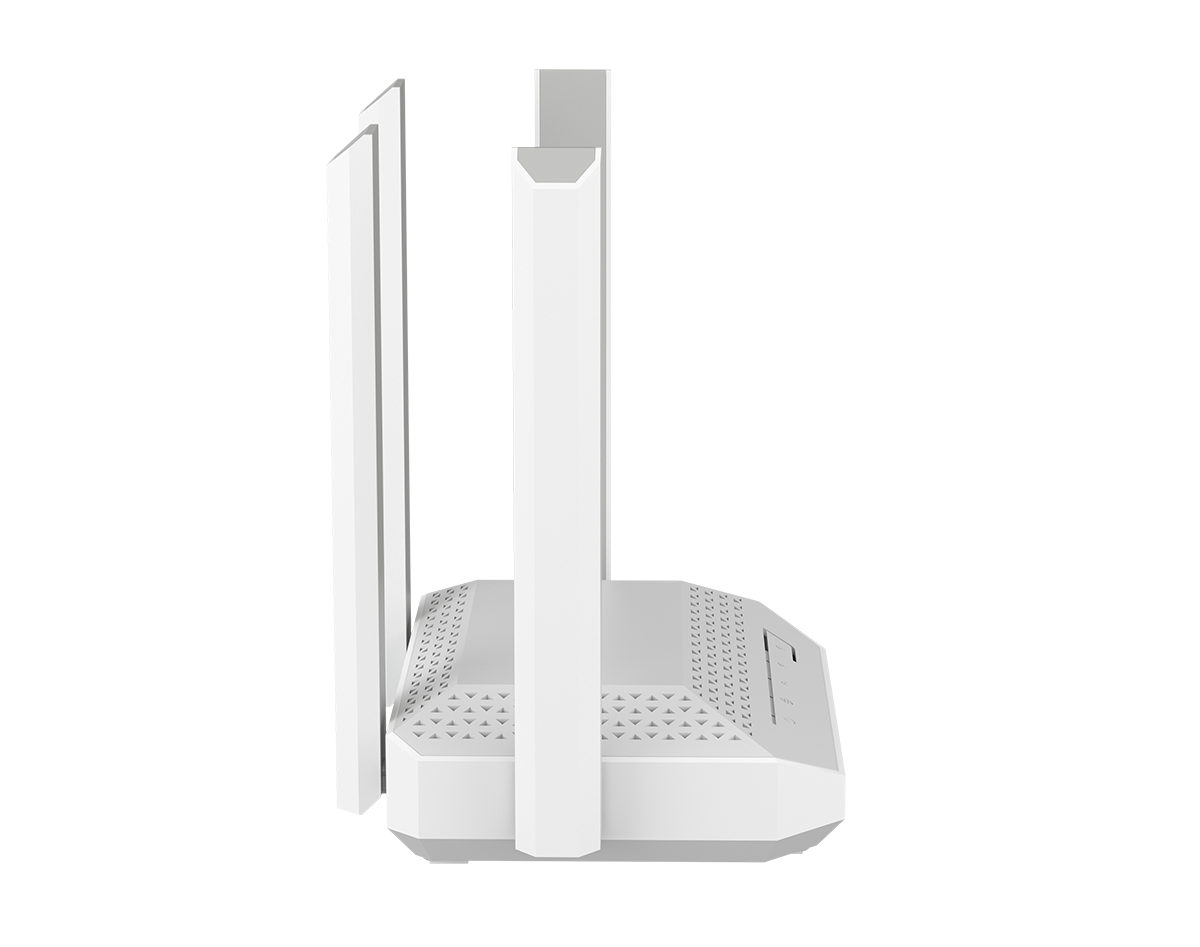

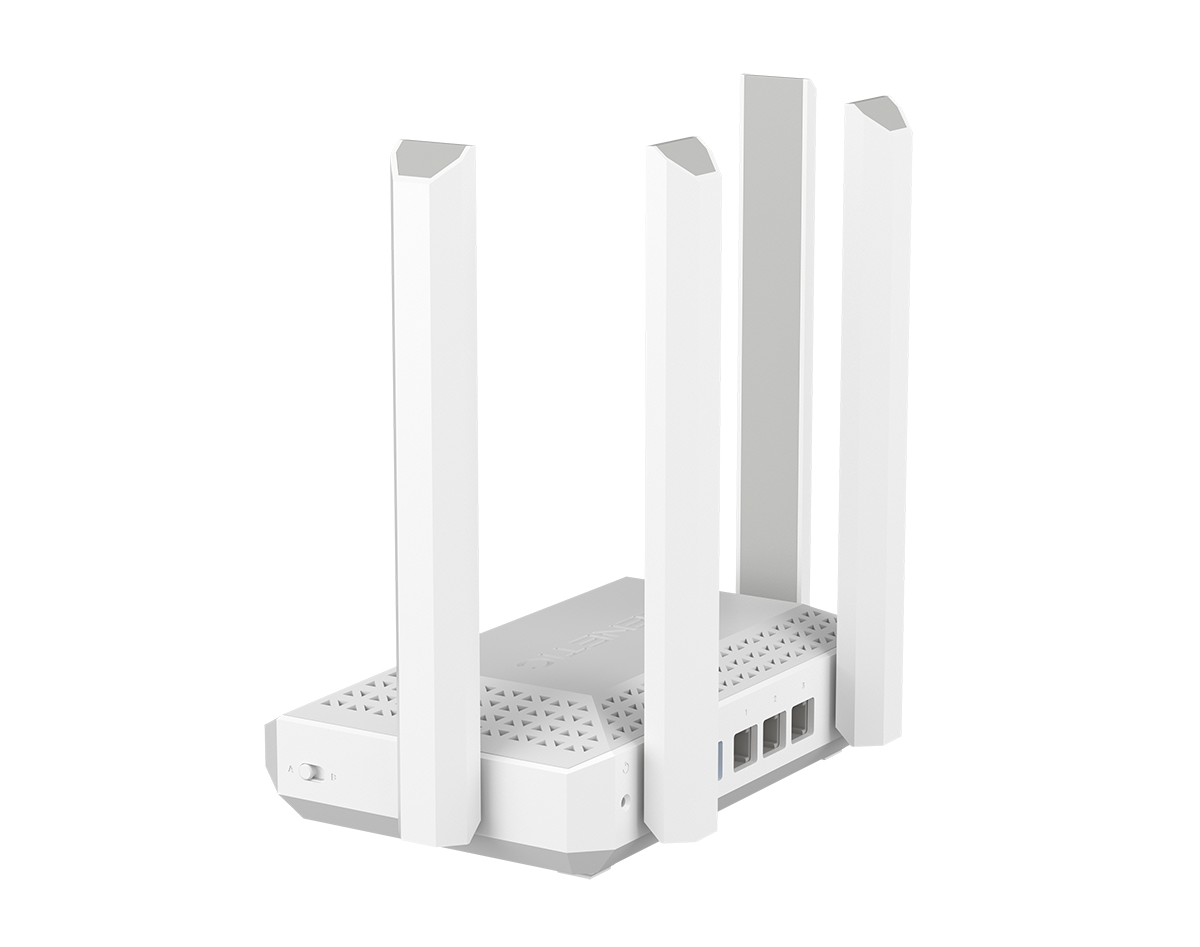

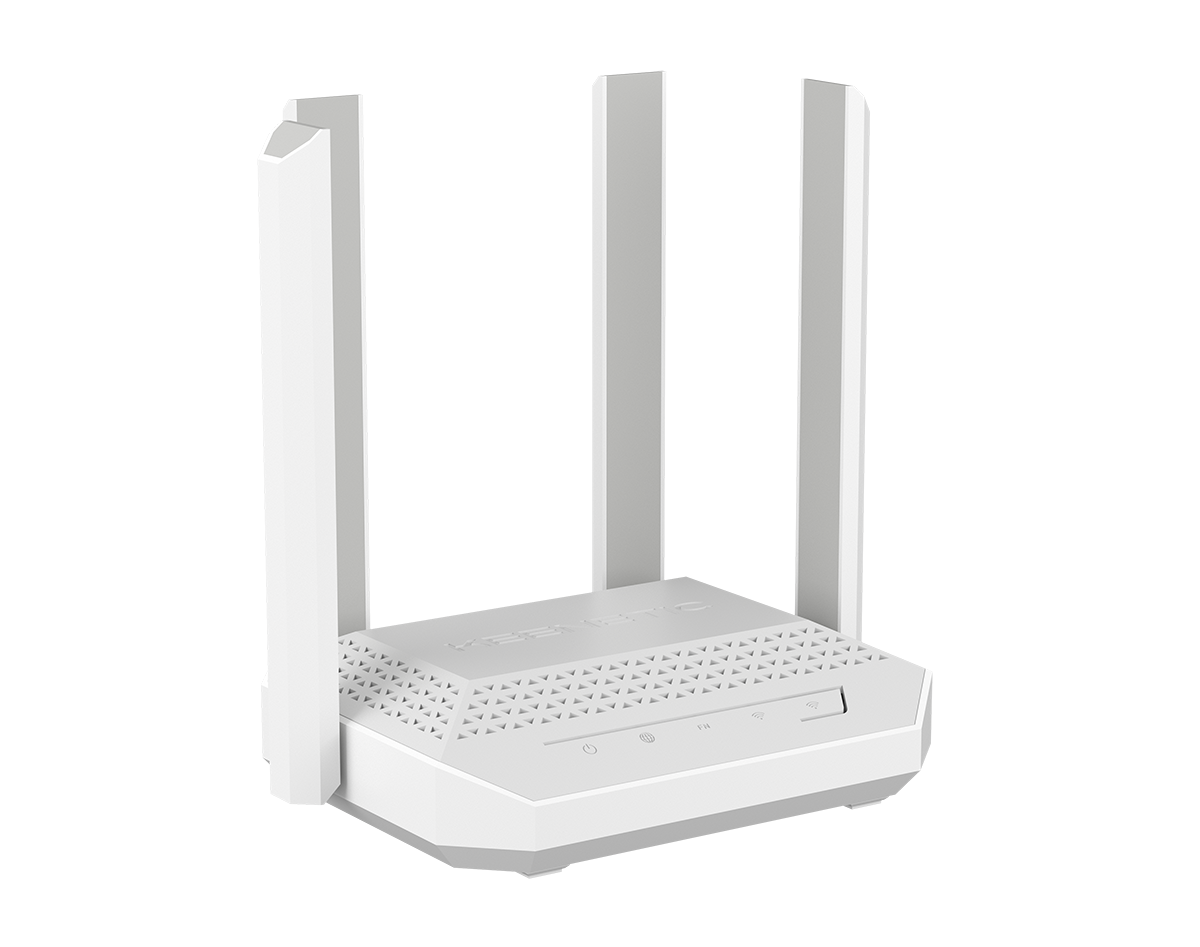

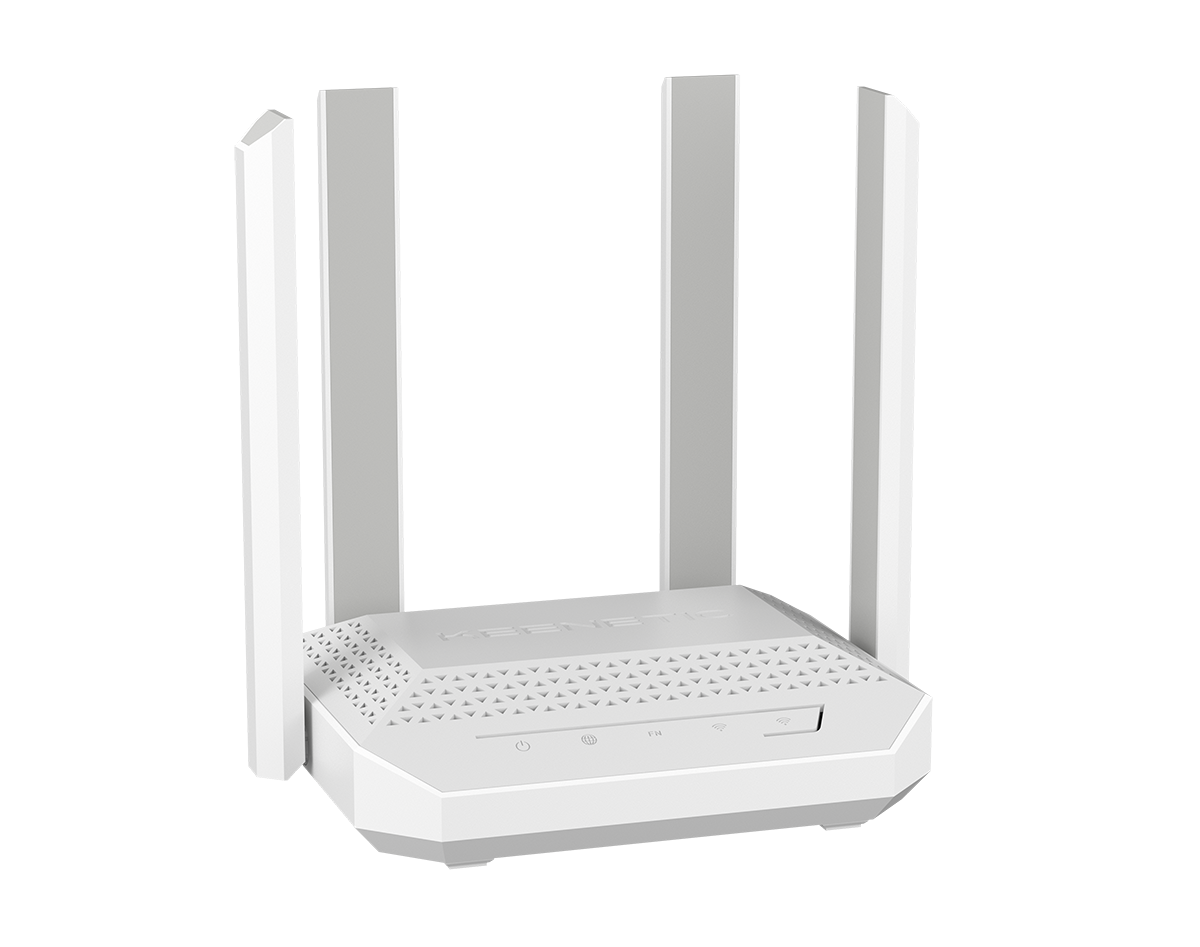

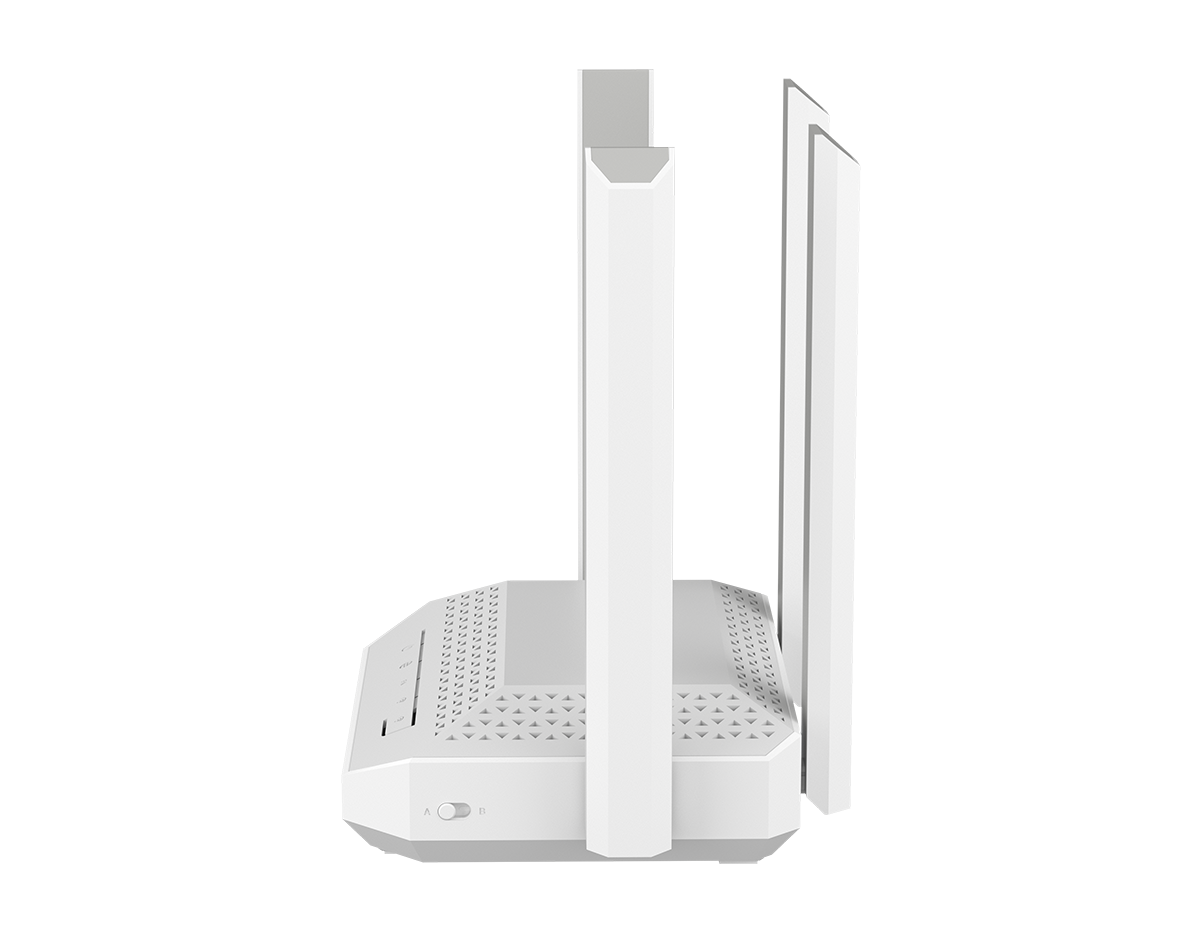

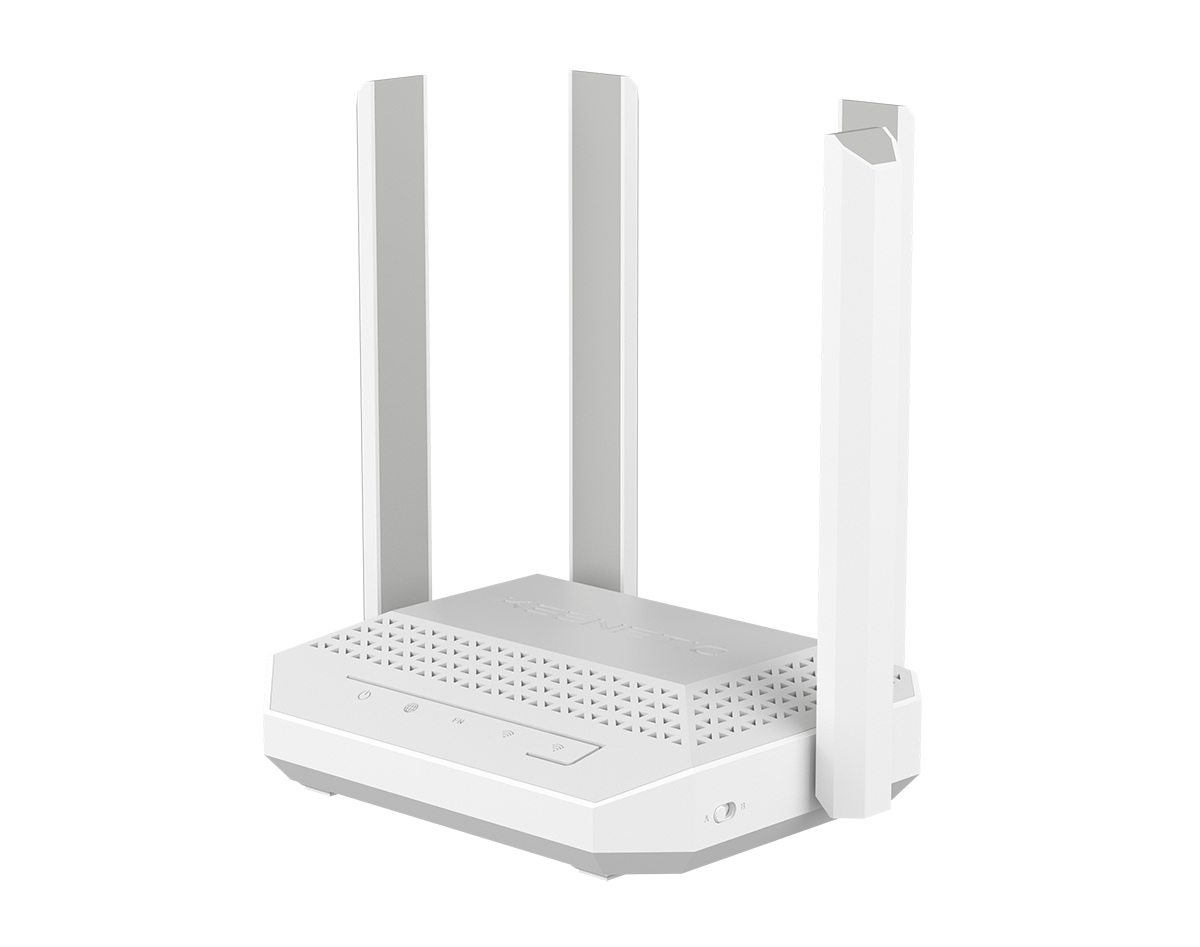

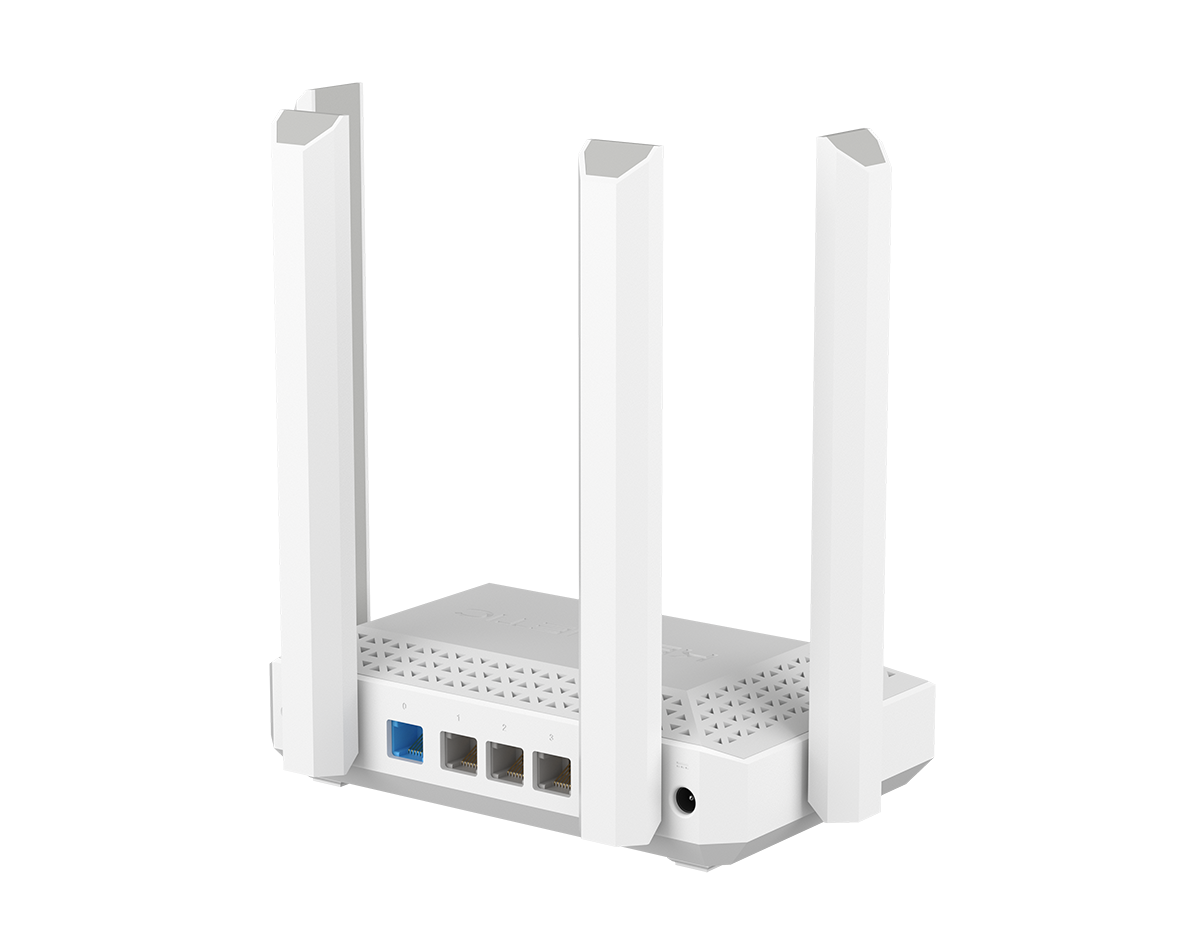

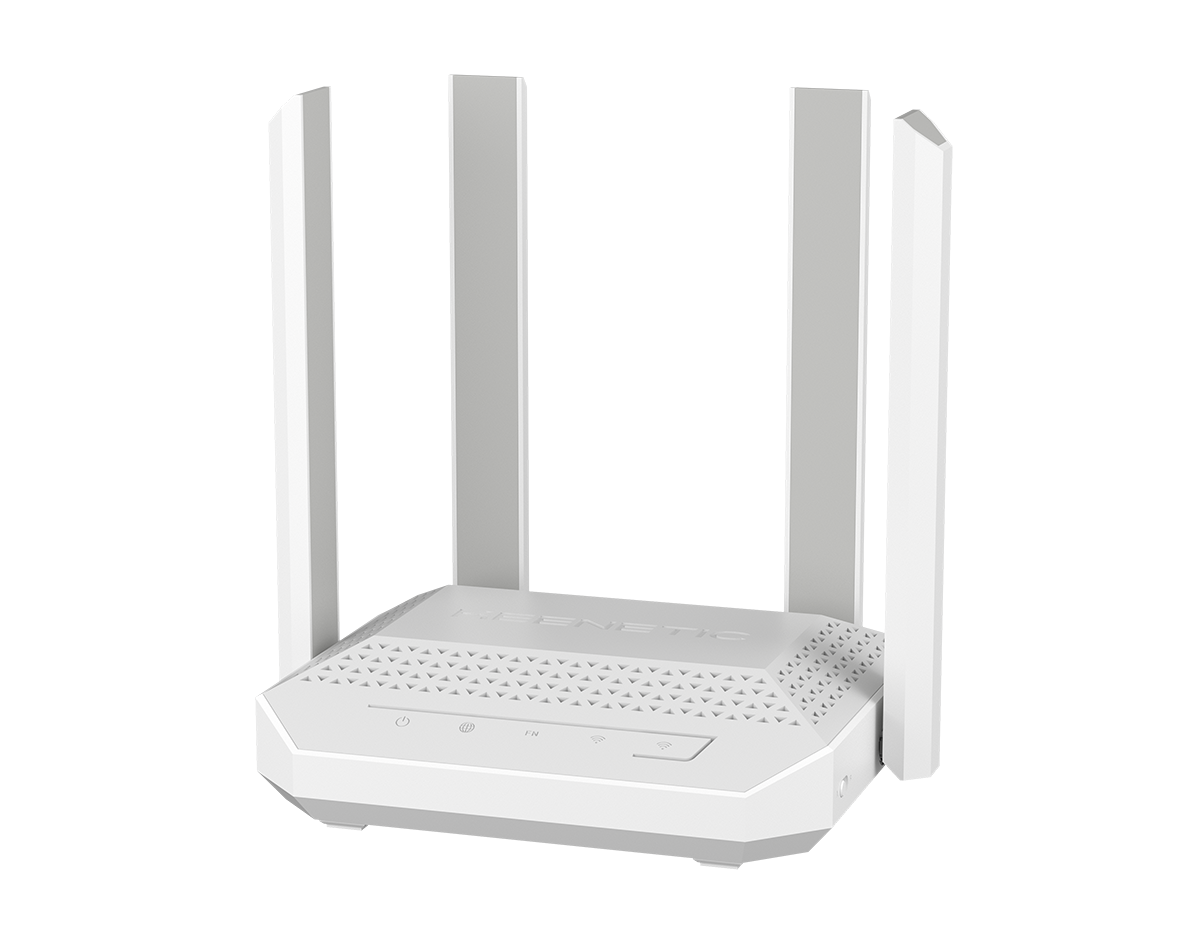

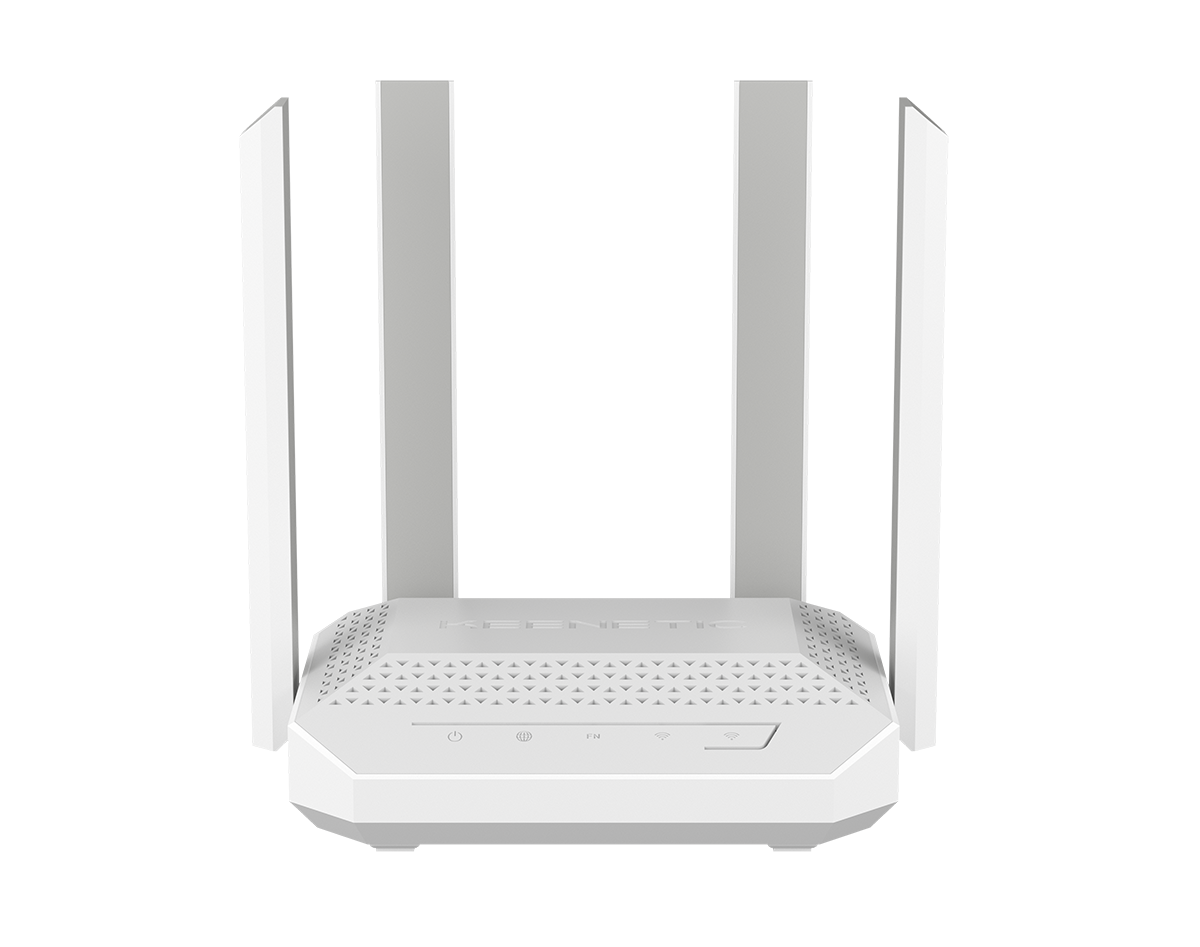

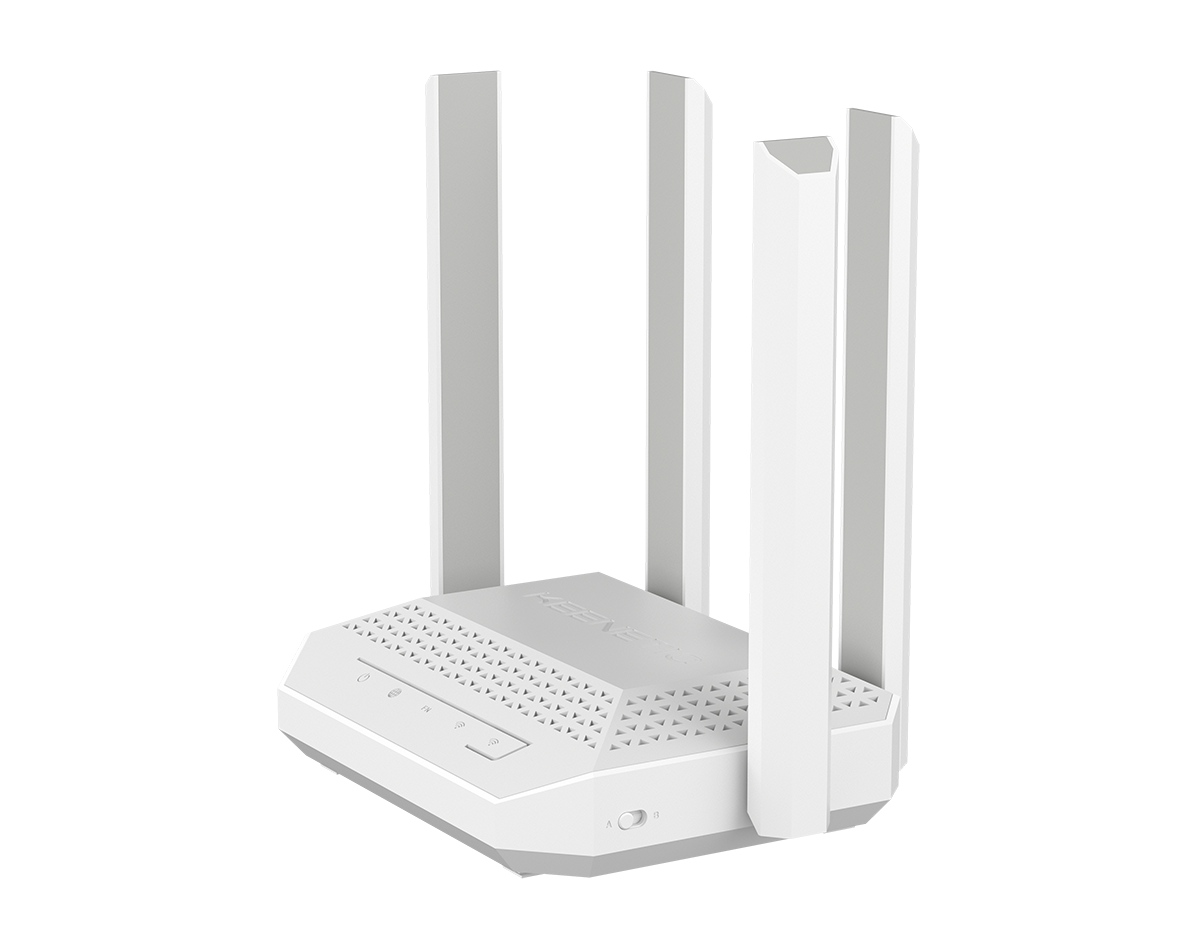

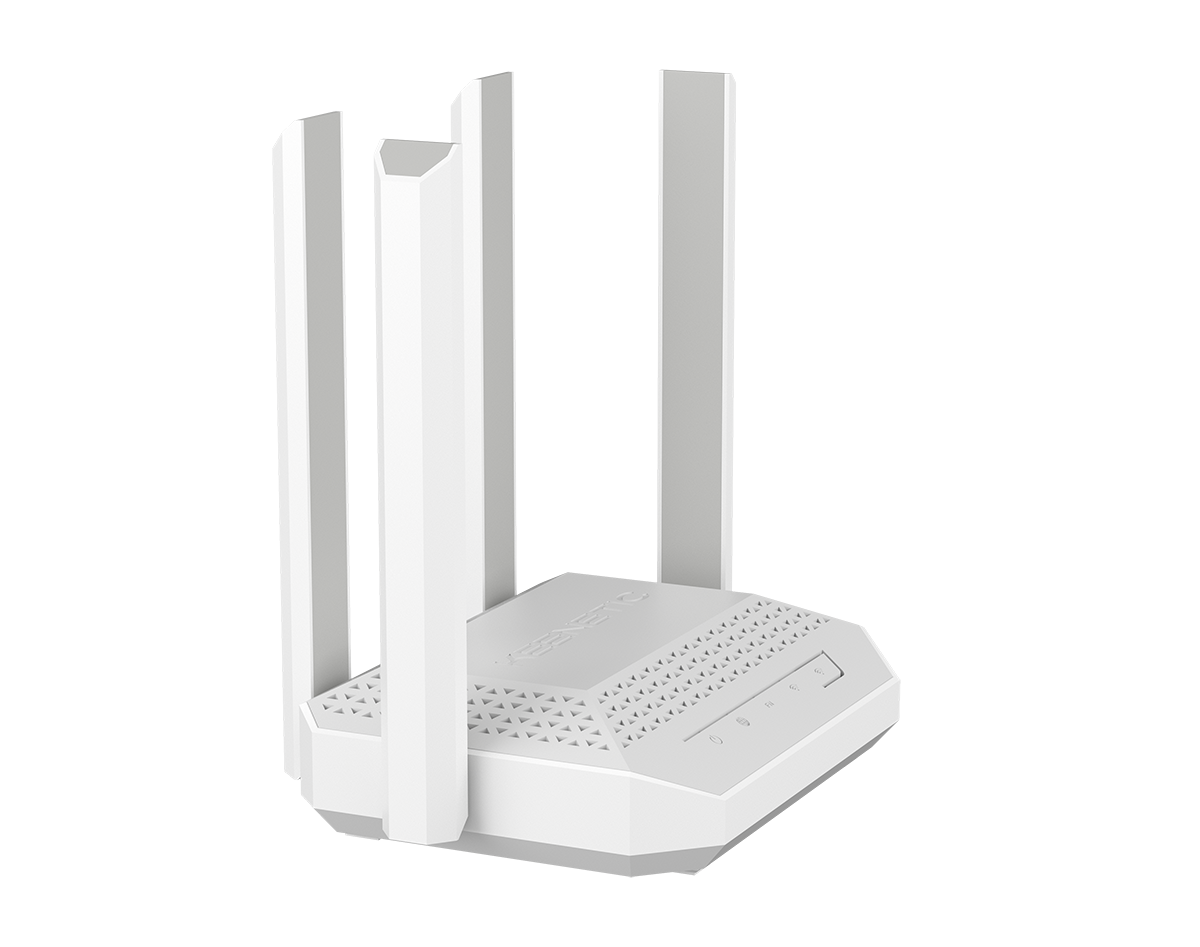

Keenetic Sprinter

N300 Mesh Wi-Fi Router/Extender with a 5-Port Smart Switch

Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
Keenetic Sprinter
    • Any Internet plans up to 100 Mbps, MultiWAN, IPTV, and Smart TV
    • Wi-Fi with precision 5 dBi PCB antennas
    • Two operating modes: Router Mode and Wi-Fi Extender Mode
    • Physical mode selector for easy installation
    • Built-in cyber threat protection, ad blocker, per device parental control
    • Set up and manage your home network from anywhere via the mobile app

Specifications

Key features
Model number KN-1311
CPU MT7628N 575 MHz
RAM 64 MB DDR2
Flash memory, Dual Image 32 MB
Wi-Fi class N300
Antennas 5 dBi

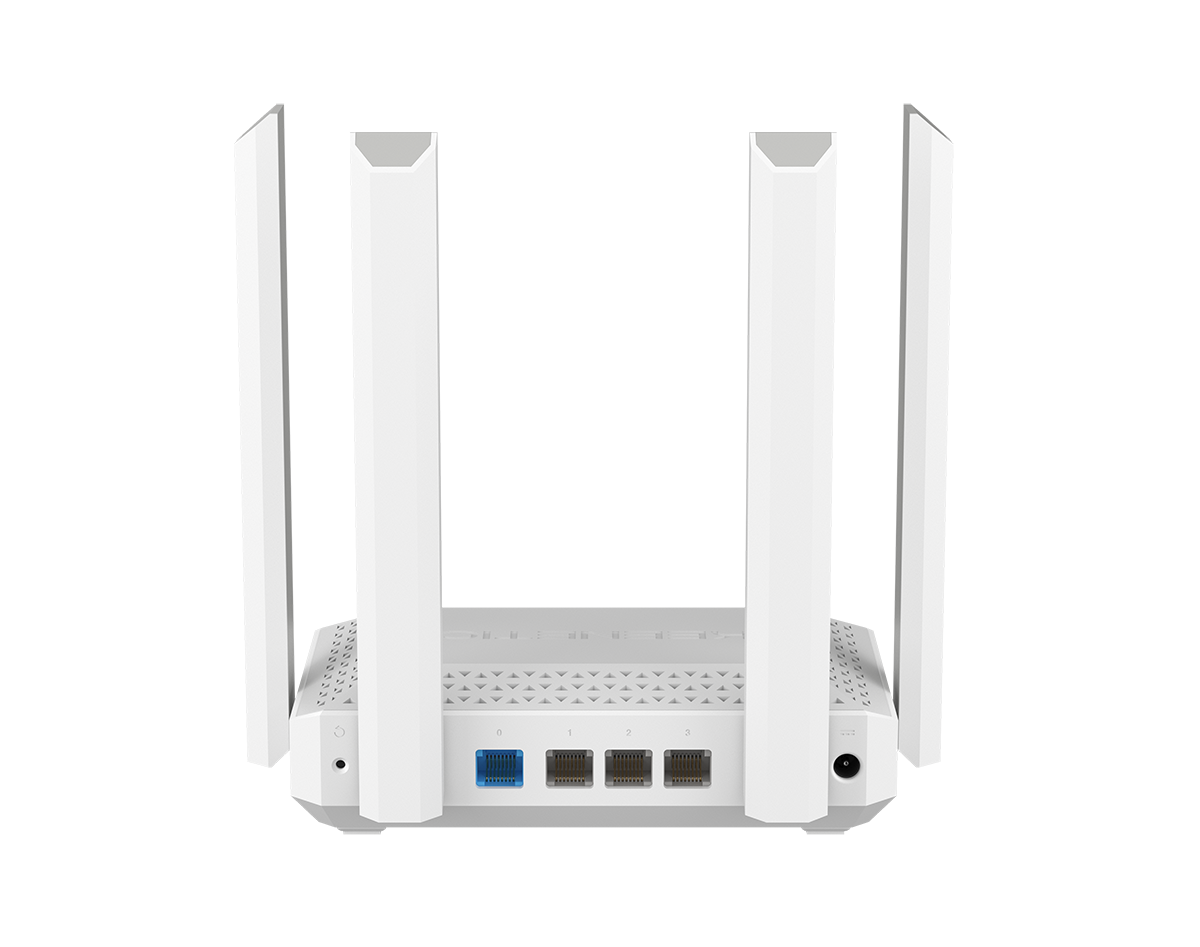

Ethernet ports 5 x 100 Mbps
WPS/Wi-Fi button
Mesh Wi-Fi System Via MESH Wi-Fi or Ethernet cable
Performance
2,4 GHz Wi-Fi network 300 Mbit/s
IPoE/PPPoE routing Up to 95 Mbit/s
L2TP/PPTP routing Up to 95 Mbit/s
Wireless network
Seamless roaming 802.11k/r/v
Pre-configured Wi-Fi protection
WEP, WPA-PSK
WPA2-PSK, WPA2-Enterprise
WPA3-PSK, WPA3-Enterprise, OWE
Multi-SSID and Guest Network
Access control by MAC address
Wi-Fi Multimedia (WMM)
Features and protocols
IPoE, PPPoE, PPTP, L2TP, 802.1x
Multi-WAN
Policy routing
Internet connection backup
Ping Check connectivity monitor
PPPoE/PPTP/L2TP pass-through
VLAN IEEE 802.1Q
Routing table (DHCP/Manual)
DHCP (client/server)
IPv6 Dual Stack
NAT
IGMP
UDP to HTTP proxy
UPnP
Manual port forwarding
SPI firewall with protection against DoS attacks
L2TP over IPSec client/server
OpenVPN client/server
SSTP client/server
Ethernet-over-IP, IP-IP, GRE
IPsec VPN (client/server)
Dynamic DNS client
Direct or cloud access via KeenDNS
HTTPS security for access via KeenDNS
SafeDNS parental control
AdGuard ad blocker
Traffic statistics per client
Bandwidth limit per client
Access schedule per client or interface
Guest hotspot with authentication (Captive Portal)
Troubleshooting and management
Mobile app for Android and iOS
Web Interface with the Initial Setup Wizard and HTTPS security
Command Line (CLI) via TELNET/SSH
An option to control from external network
Backup and restore configuration
Automatic OS updates
System event logging
Physical specifications and environment requirements
Device dimensions excluding antenna, w x d x h 159mm x 110mm x 29mm
Device weight 200g
Operating temperature 0–40°С
Operating humidity 20 – 95% non-condensing
Power supply voltage 100-240V 50/60 Hz
Package contents
Device
Power adapter
Ethernet cable
Usage guide
