Keenetic Orbiter 6

New model

AX3000 Wi-Fi 6 Access Point with a 2.5 Gigabit Ethernet Port and Power over Ethernet

Software that broadens your horizons

Seamlessly connected, effortlessly managed

Orbiter's full functionality is unlocked when connected to a Keenetic router via Ethernet or through Mesh Wi-Fi technology. Keenetic devices in a Mesh Wi-Fi System create a seamless network with 802.11k/r/v roaming and centralised management — all accessible via the main router, mobile app, or the Keenetic RMM cloud platform. Take your Wi-Fi experience to the next level with Orbiter 6 and enjoy unmatched speed and reliability across all your connected devices.

Enterprise-grade hardware

Flexible installation and wide coverage

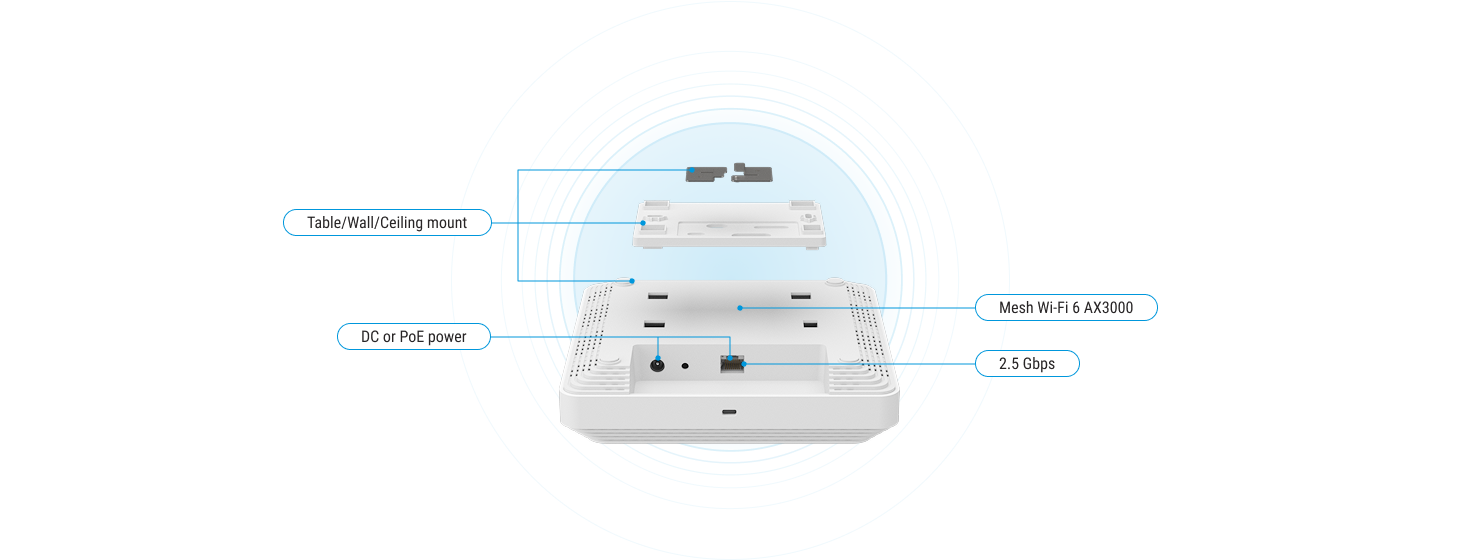

Orbiter 6 features a precisely engineered, integrated multi-antenna system with directional beamforming reflectors and discrete signal amplifiers. It supports both PoE and DC power, and offers flexible installation options — whether on a table, wall, or ceiling. With a 2.5G Ethernet port, support for 802.1Q VLANs, and WPA2/WPA3 Enterprise-grade security, it's built for high-performance business environments.

Whole Home & Mesh Wi-Fi

Say goodbye to dead zones with our Mesh Wi-Fi feature, which allows multiple units to work seamlessly together to create consistent, robust wireless coverage throughout your space.

PoE

Simplify your network infrastructure with PoE support, allowing you to power devices such as VoIP phones, IP cameras and Wi-Fi access points directly over the network cable.

Wall or ceiling mount

This Keenetic device can be placed on a flat surface or attached to a wall or solid ceiling using the supplied mounting kit, it can also be fitted to suspended ceilings using the mounting kit together with T-rail clips.

The most advanced operating system for your network

KeeneticOS makes managing your network a breeze. With a beautifully designed interface and rich functionality, you can build the most advanced networks that work for your family or business and protect against cyber threats.

Learn more
Keenetic Orbiter 6
Keenetic Orbiter 6
Keenetic Orbiter 6
Keenetic Orbiter 6
Keenetic Orbiter 6
Keenetic Orbiter 6
Keenetic Orbiter 6
Keenetic Orbiter 6
Keenetic Orbiter 6
Keenetic Orbiter 6
Keenetic Orbiter 6
Keenetic Orbiter 6

Specifications

Key features
Model number KAP-630
CPU MT7981B 1300 MHz, dual core
RAM 512 MB DDR4
Flash memory, Dual Image 128 MB
Wi-Fi 2.4 + 5 GHz ✔
Wi-Fi class AX3000
Wi-Fi antennas 3 total
2.4 GHz: 2 dual-band internal
5 GHz: 2 dual-band internal, 1 internal
Wi-Fi client capacity Up to 256 in 2.4 & 5 GHz (shared)
Ethernet ports 1 × 2.5 Gbps + PoE
Mesh Wi-Fi System ✔
DFS support Zero Wait DFS (ch. 52–64)
Standard DFS (ch. 100–140)
Performance
2.4 GHz Wi-Fi network 574 Mbps (802.11ax)
2T × 2R: 4SS, 40 MHz
5 GHz Wi-Fi network 2402 Mbps (802.11ax)
3T × 3R: 2SS, 160 MHz
Wireless network
Seamless roaming 802.11k/r/v ✔
MU-MIMO ✔
Airtime Fairness ✔
Beamforming ✔
OFDMA ✔
Pre-configured Wi-Fi protection ✔
WEP, WPA-PSK ✔
WPA2-PSK, WPA2-Enterprise ✔
WPA3-PSK, WPA3-Enterprise, OWE ✔
Multiple Wi-Fi networks Up to 7
Access control by MAC address ✔
Wi-Fi Multimedia (WMM) ✔
Features and protocols
VLAN IEEE 802.1Q ✔
Direct or cloud access via KeenDNS ✔
Troubleshooting and management
Cloud-based Remote Network Monitoring and Management ✔
Web Interface with the Initial Setup Wizard and HTTPS security ✔
Command Line (CLI) via TELNET/SSH ✔
An option to control from external network ✔
Backup and restore configuration ✔
Automatic OS updates ✔
System event logging ✔
Physical specifications and environment requirements
Device dimensions, w x d x h 170 mm × 170 mm × 42 mm
Device weight 488 g
Operating temperature 0–40 °С
Operating humidity 20–95% non-condensing
Power supply voltage 100–240 V 50/60 Hz; 802.3at (PoE+ 18 W)
Package contents
Device ✔
Power adapter 12 V 1.5 A
Wall / ceiling mounting kit ✔
Quick start guide ✔
Certificates
EU Declaration of Conformity CE KAP-630
