Wi-Fi For Your Smart Home and Business

Keenetic Explorer

AC1200 Dual Band Mesh Wi-Fi Router/Extender with 5-Port Smart Switch

Keenetic Explorer
Keenetic Explorer
Keenetic Explorer
Keenetic Explorer
Keenetic Explorer
Keenetic Explorer
Keenetic Explorer
Keenetic Explorer
Keenetic Explorer
Keenetic Explorer
Keenetic Explorer
Keenetic Explorer
Keenetic Explorer
Keenetic Explorer
    • AC1200 2.4 GHz + 5 GHz Wi-Fi with precision 5 dBi PCB antennas
    • Four operation modes: router, access point, adapter, and Wi-Fi repeater
    • Physical mode selector for easy installation
    • Any Internet plans up to 100 Mbps, MultiWAN, IPTV, and Smart TV
    • Built-in cyber threat protection, ad blocker, per device parental control
    • Set up and manage your home network from anywhere via mobile app

Specifications

Key features
Model number KN-1611
CPU MT7628N 580 MHz
RAM 128 MB DDR2
Flash memory, Dual Image 32 MB
Wi-Fi 2.4 + 5 GHz ✔
Wi-Fi class AC1200
Antennas 5 dBi
Ethernet ports 5 x 100 Mbps
WPS/Wi-Fi button ✔
Wi-Fi system support Via MESH Wi-Fi or Ethernet cable
Performance
2,4 GHz Wi-Fi network 300 Mbit/s
5 GHz Wi-Fi network 867 Mbit/s
IPoE/PPPoE routing Up to 95 Mbit/s
L2TP/PPTP routing Up to 95 Mbit/s
Wireless network
Seamless roaming 802.11k/r/v ✔
MU-MIMO ✔
Airtime Fairness ✔
Beamforming ✔
Pre-configured Wi-Fi protectioni ✔
WEP, WPA-PSK ✔
WPA2-PSK, WPA2-Enterprise ✔
WPA3-PSK, WPA3-Enterprise, OWE ✔
Multi-SSID and Guest Network ✔
Access control by MAC address ✔
Wi-Fi Multimedia (WMM) ✔
Features and protocols
IPoE, PPPoE, PPTP, L2TP, 802.1x ✔
Multi-WAN ✔
Policy routing ✔
Internet connection backup ✔
Ping Check connectivity monitor ✔
PPPoE/PPTP/L2TP pass-through ✔
VLAN IEEE 802.1Q ✔
Routing table (DHCP/Manual) ✔
IntelliQoS ✔
DHCP (client/server) ✔
IPv6 Dual Stack ✔
NAT ✔
IGMP ✔
UDP to HTTP proxy ✔
UPnP ✔
Manual port forwarding ✔
SPI firewall with protection against DoS attacks ✔
L2TP over IPSec client/server ✔
OpenVPN client/server ✔
SSTP client/server ✔
Ethernet-over-IP, IP-IP, GRE ✔
IPsec VPN (client/server) ✔
Dynamic DNS client ✔
Direct or cloud access via KeenDNS ✔
HTTPS security for access via KeenDNS ✔
SafeDNS parental control ✔
AdGuard ad blocker ✔
Traffic statistics per client ✔
Bandwidth limit per client ✔
Access schedule per client or interface ✔
Guest hotspot with authentication (Captive Portal) ✔
Troubleshooting and management
Mobile app for Android and iOS ✔
Web Interface with the Initial Setup Wizard and HTTPS security ✔
Command Line (CLI) via TELNET/SSH ✔
An option to control from external network ✔
Backup and restore configuration ✔
Automatic OS updates ✔
System event logging ✔
Physical specifications and environment requirements

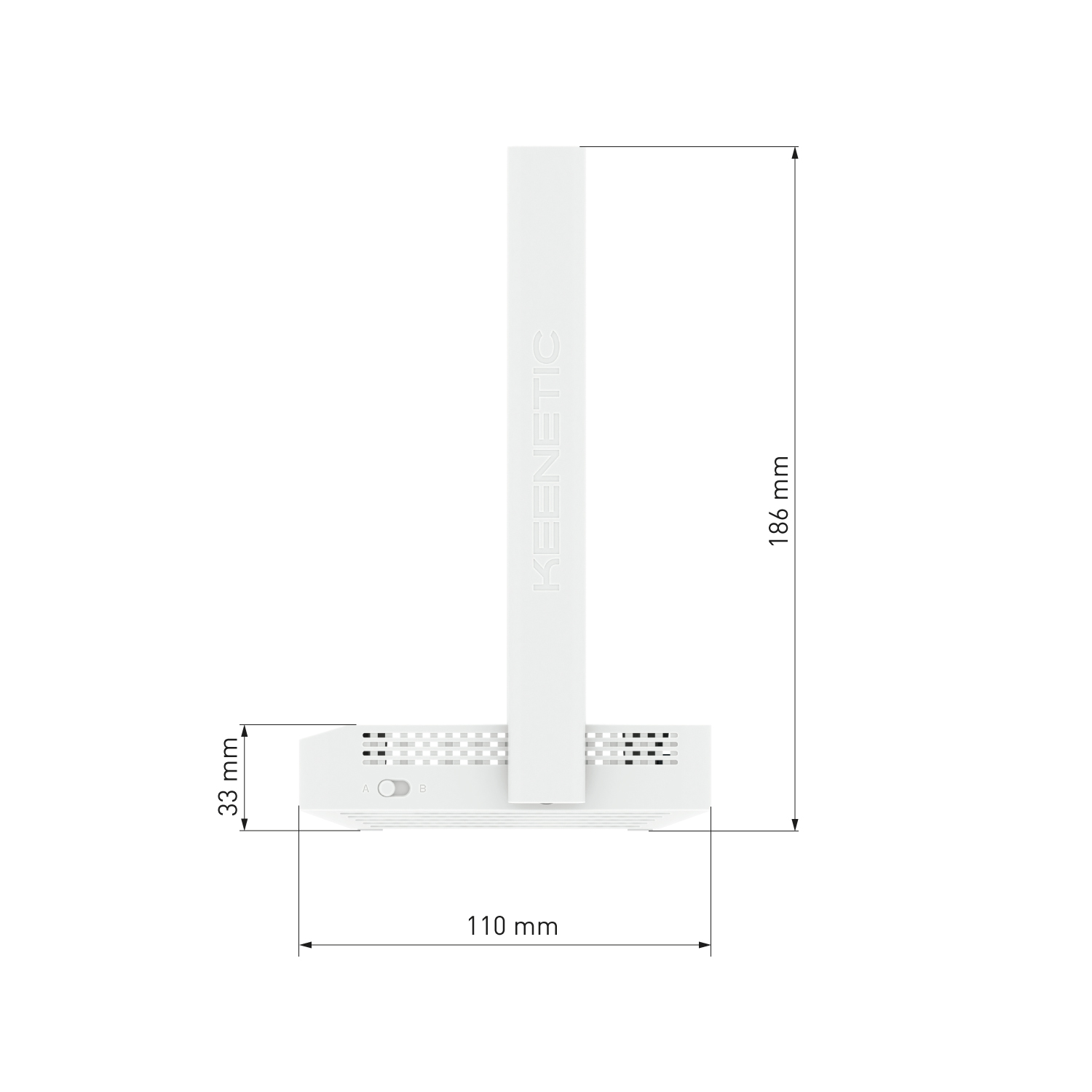

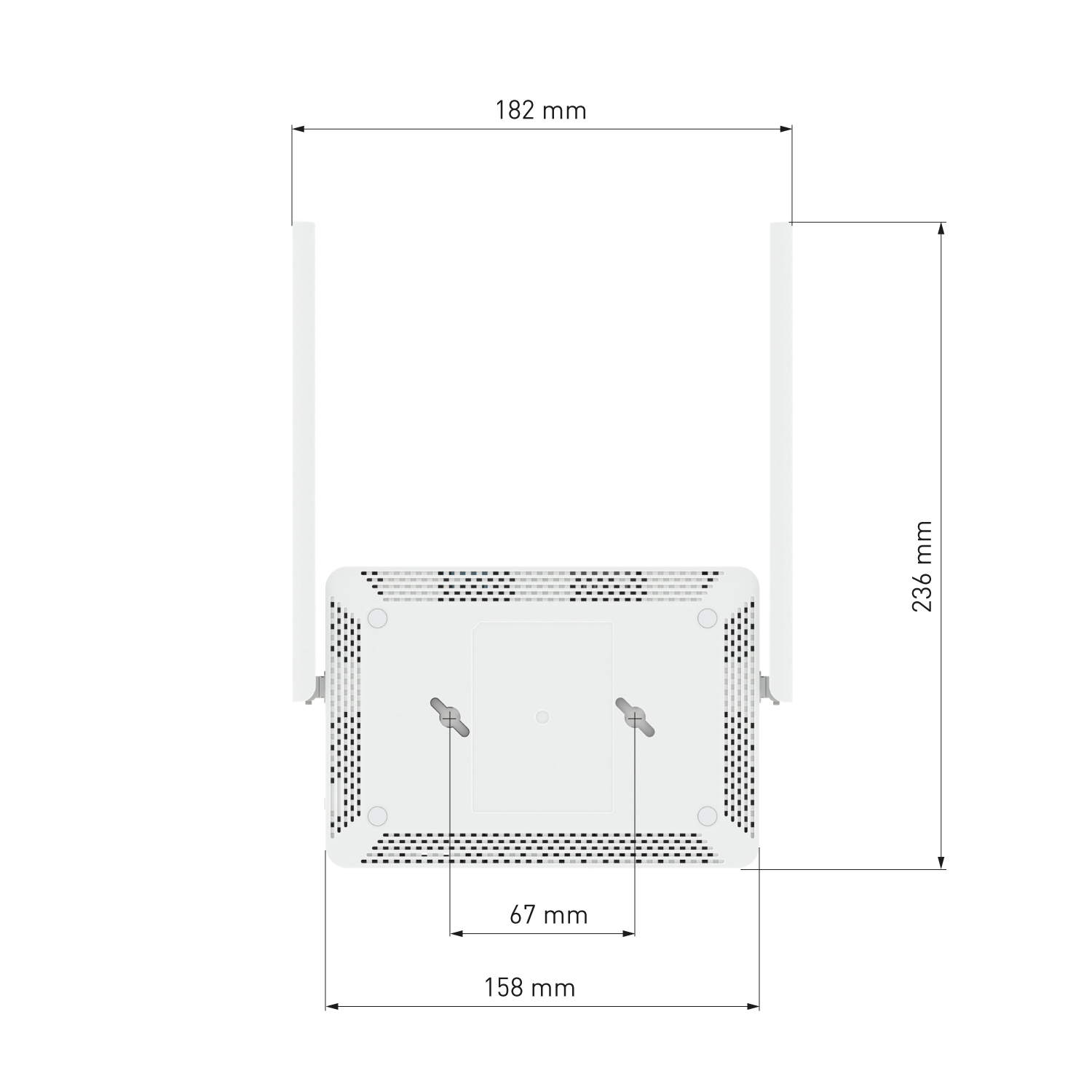

Device dimensions excluding antenna, w x d x h 159mm x 110mm x 29mm
Device weight 248g
Operating temperature 0–40°С
Operating humidity 20 – 95% non-condensing
Power supply voltage 100-240V 50/60 Hz
Package contents
Device ✔
Power adapter ✔
Ethernet cable ✔
Usage guide ✔
